LN mf4003 mf4008 micro digital display mass air hydrogen flow meter price sensor maf

Product Tags :

Product Description

LN mf4003 mf4008 micro digital display mass air hydrogen flow meter price sensor maf with customer programing panel are designed forgeneral purpose gas mass flow measurement with the Company's proprietary MEMSsensing technology. Both electronic and mechanical interfaces can be opted by customers.

Features

Features.

General purpose gas mass flow metrology2.Fast response time, customizable to 1 msec

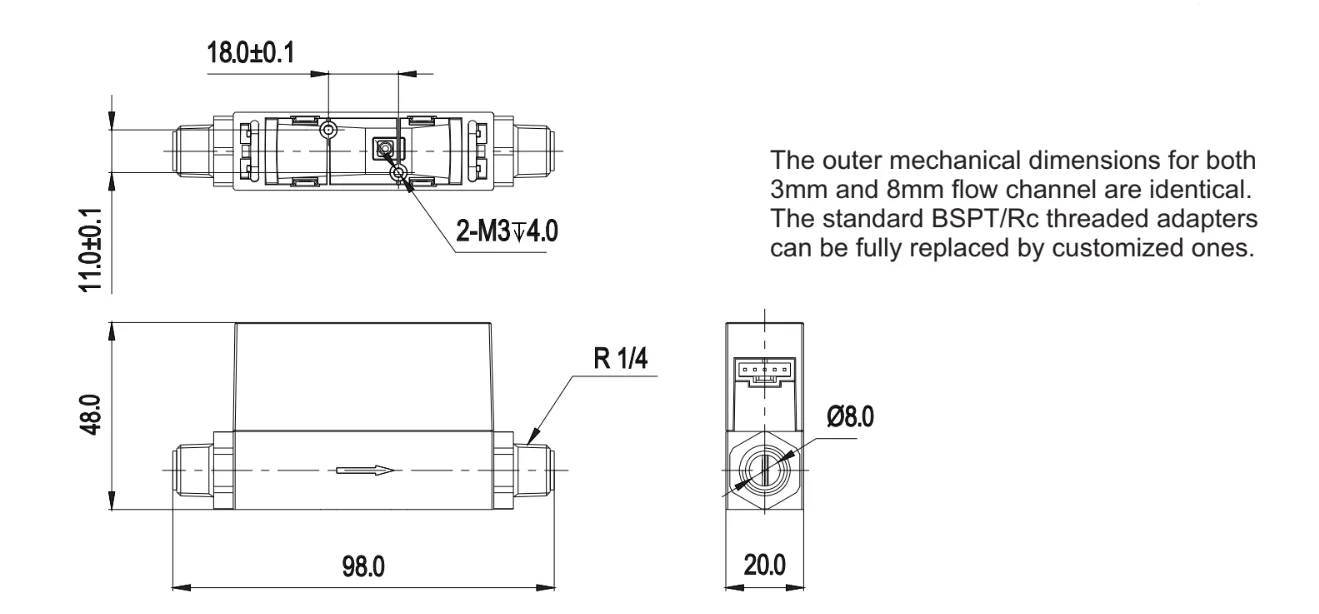

Two standard channel sizes，3 and 8mm
Large dynamic ranges over 100:1 5.Optional mechanical and electrical interfaces
Customer accessible front panel for parameters

Specification

Item	LN mf4003 mf4008 micro digital display mass air hydrogen flow meter price sensor maf
Brand	Lino
Model	MF4003 ,MF4008
Range	MF4003 (0-2,5lpm) MF4008(0-10,50slpm)
Output	LED,RS232/RS485/1C; Analog 0.5 ~ 4.5 Vdc
Display	LED
Response time	10(default,50，100,200,500,1000 selectable) msec
Working Temperature	-10-55ºC
Accuracy	1.5+0.2FS%
Power	8-24V dc
