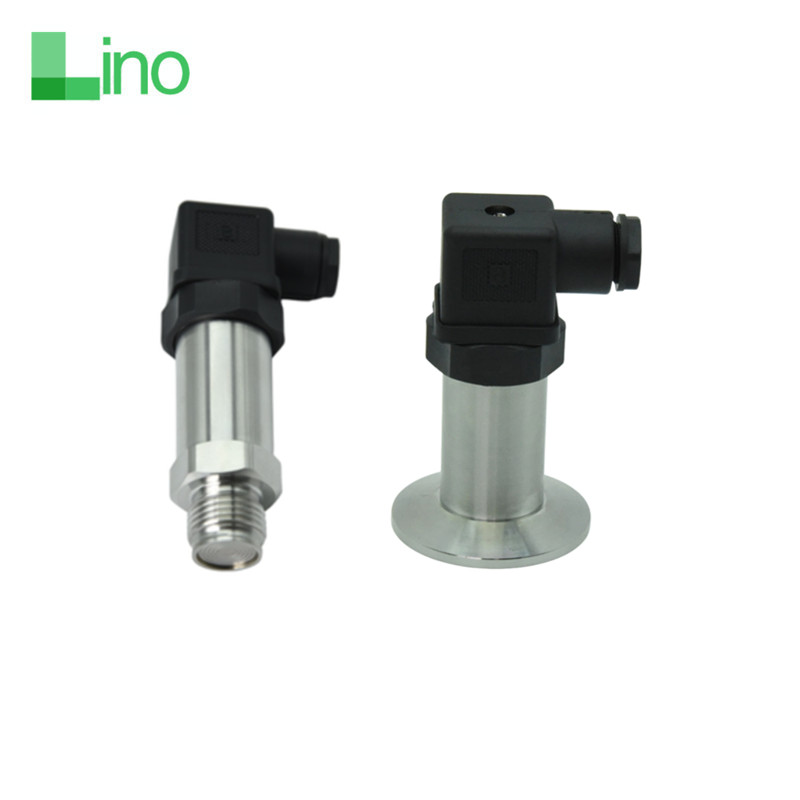

Lino LNT203 flush mounting diaphragm pressure transmitter

Product Tags :

Product Description

Lino LNT203 flush mounting 4-20ma diaphragm seal type pressure transmitter  is is formed on the basis of the prototype of the general pressure transmitter, and is formed by adding a welded and sealed isolation diaphragm structure. Its welded sealing isolation diaphragm device has a variety of different process connection structures, especially suitable for pressure measurement in high temperature, high viscosity and easy to block occasions, and also suitable for pressure measurement in sanitary and medical occasions.

Features

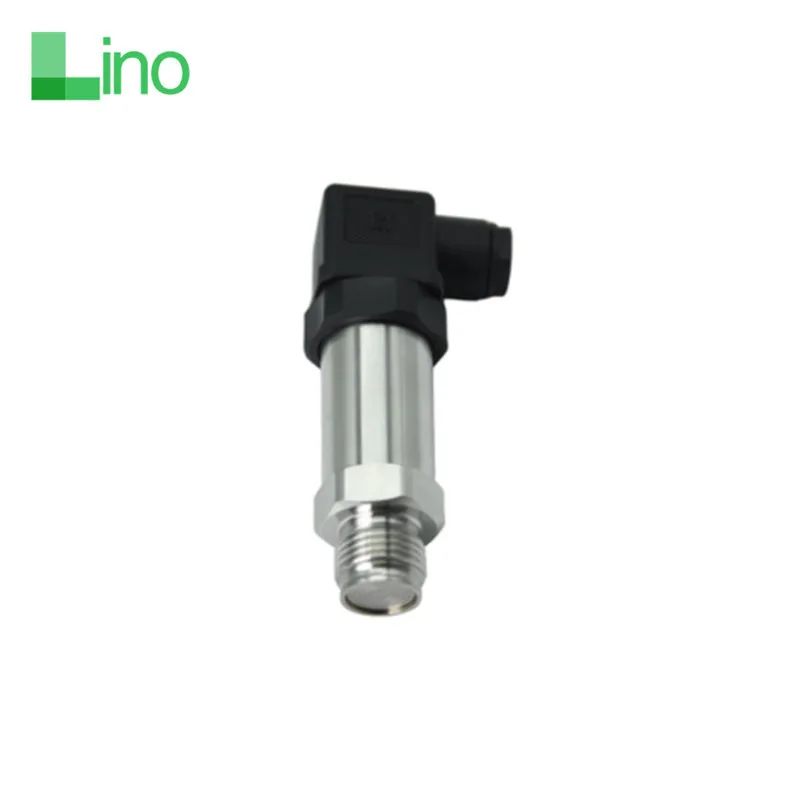

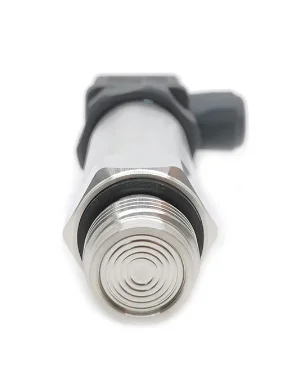

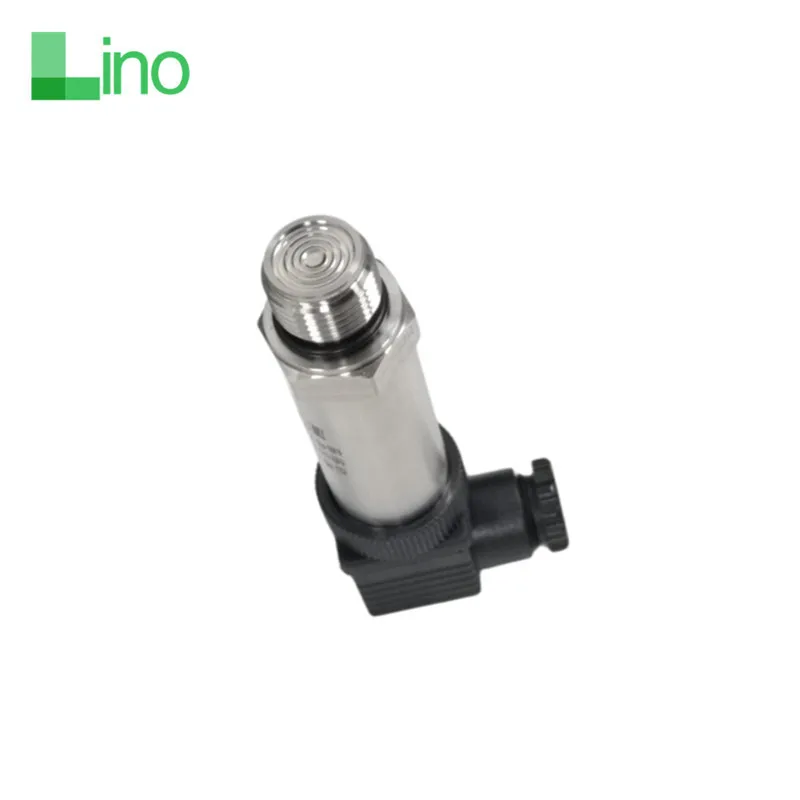

Thread type diaphragm

Hygienic anti-scaling 316L flat membrane Hygienic anti-fouling

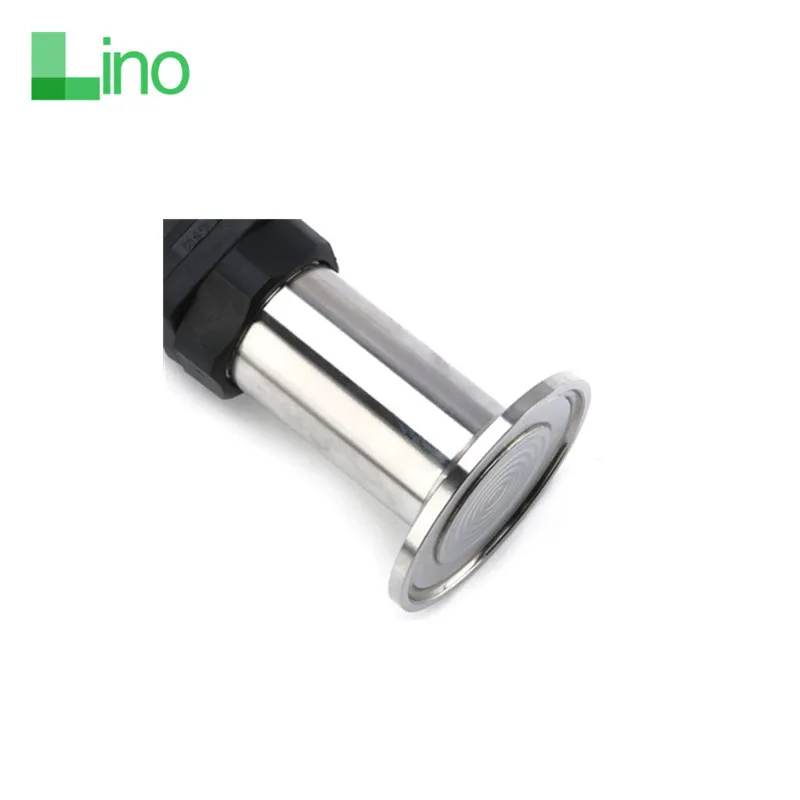

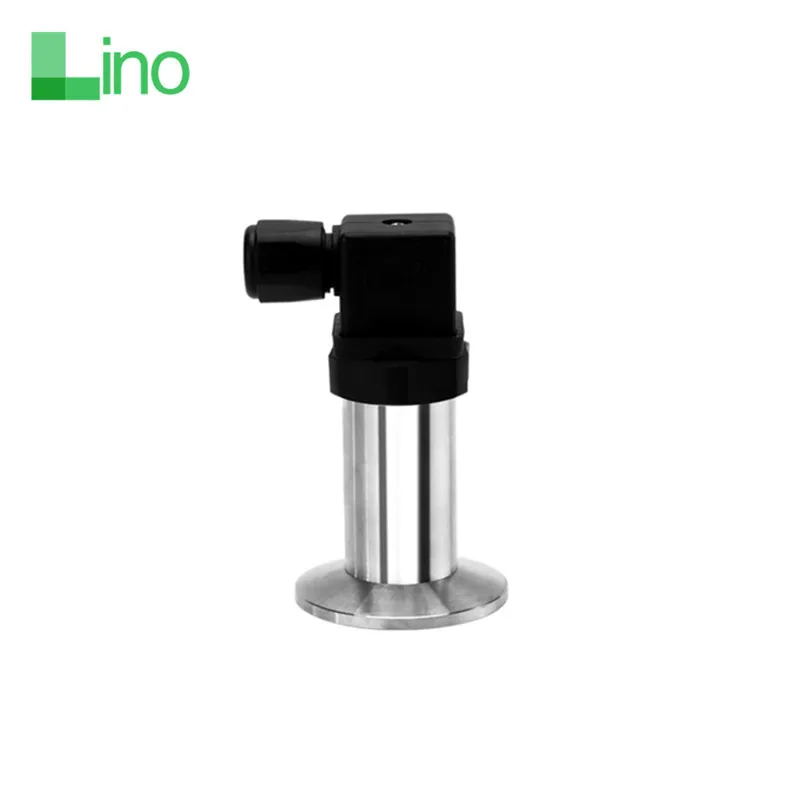

Clamp type sanitary diaphragm

50.5mm clamp ,Applicable to various pulp and viscous liquid pulp, cement, various pulp, glue, paint, etc.

Specification

Item	Lino LNT203 flush mounting 4-20ma diaphragm seal type pressure transmitter
Brand	Lino
Pressure range	0-10bar
Output	4-20mA
Power	24V
Accuracy	0.25%
Thread	G1/2，M20*1.5，Clamp
Temperature range	-25-125C
Protection grade	IP67
