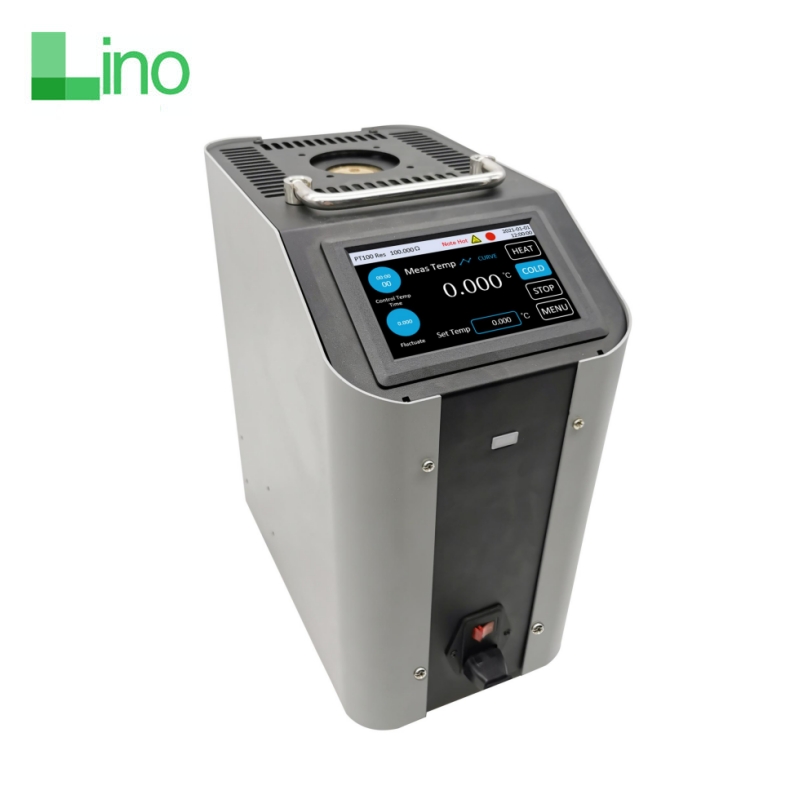

Description of Dry block temperature calibrator -30℃ 150℃ 600℃ 1000℃ 1200℃
The Dry Block Temperature Calibrator is a convenient and efficient temperature calibration instrument., which is easy to use. It can be extensively applied in machinery, chemical industry, food, medicine and other industries. At present, there is a problem of disadvantage of slow heating and slow temperature in the field of dry type calibration furnace in China, which will take a long time for users to calibrate. The latest generation of dry well furnace is designed with the advanced heating principle in the world, which has the characteristics of fast heating, fast temperature and fast cooling, and it greatly improves the existing calibration efficiency. With the assistance of high -precision sensor and reliable temperature control circuit, our dry block temperature calibrator provides higher precision than others in China, and its technology has reached international standard.
Specification of Description of Dry block temperature calibrator -30℃ 150℃ 600℃ 1000℃ 1200℃
|
Model |
LN-150A |
LN-150B |
LN-650 |
LN-1200A |
LN-1200B |
|
temperature range |
-20℃~150℃ |
-30℃~150℃ |
50℃~650℃ |
300℃~1200℃ |
100℃~1200℃ |
|
heating rate |
30~100:20min 30~150:40min |
30~100:20min 30~150:40min |
30~300:7min 30-400:12min 30~650:25min |
30~1200:75min
|
|
|
Display accuracy |
≤±0.1℃ |
≤±0.1℃ |
Below 400℃:≤±0.35℃ 400-650℃:≤±0.5℃ |
≤±1.2℃ |
|
|
Insertion depth |
160mm |
150mm |
135mm |
||
|
Average heat block diameter |
36mm |
32mm |
32mm |
39mm |
|
|
Temperature field stability |
≤±0.02℃ |
≤±0.02℃ |
≤±0.05℃ |
≤±0.2℃ |
|
|
Horizontal temperature field |
≤±0.05℃ |
≤±0.05℃ |
≤±0.02℃ |
≤±0.25℃ |
|
|
Vertical temperature field |
The deviation in the range of 50mm calculated from the bottom of the hole of the soaking block is 1degree |
||||
|
Temperature unit |
℃ or ℉ |
||||
|
Display resolution |
0.01℃ |
||||
|
maximum power |
300W |
300W |
1200W |
3000W |
3000W |
|
weight(Net weight) |
13kg |
13kg |
11kg |
11kg |
11kg |
|
weight (Containing packaging) |
23kg |
23kg |
18kg |
20kg |
20kg |
|
Outline size |
310*190*340mm |
310*190*340mm |
250*150*310mm |
310*190*340mm |
|
|
Use environment |
Ambient temperature 0-50℃, relative humidity less than 95% (no condensation) |
||||
|
Power supply |
220VAC ± 10%, 45 ~ 60Hz, optional 110VAC ± 10%. |
||||
|
Selection function |
Verification Data Recording and Exporting (ET2501 only optional), up to 60 sensors, 600 records,USB Device Communication Interface |
||||
