RS485 duct temperature and humidity transmitter sensor
RS485 duct temperature and humidity transmitter sensor

RS485 duct temperature and humidity transmitter sensor

Product Tags :

Product Description

Description of RS485 duct temperature and humidity transmitter sensor

This temperature and humidity transmitter is suitable for the measurement of temperature and humidity of pipes or boxes. It is the responsibility of the operator to verify that the equipment is suitable for the operating conditions of the application. If you have any questions, please contact our sales department to ensure the correct application of the transmitter. The company will not take any responsibility for the impact caused by improper selection.

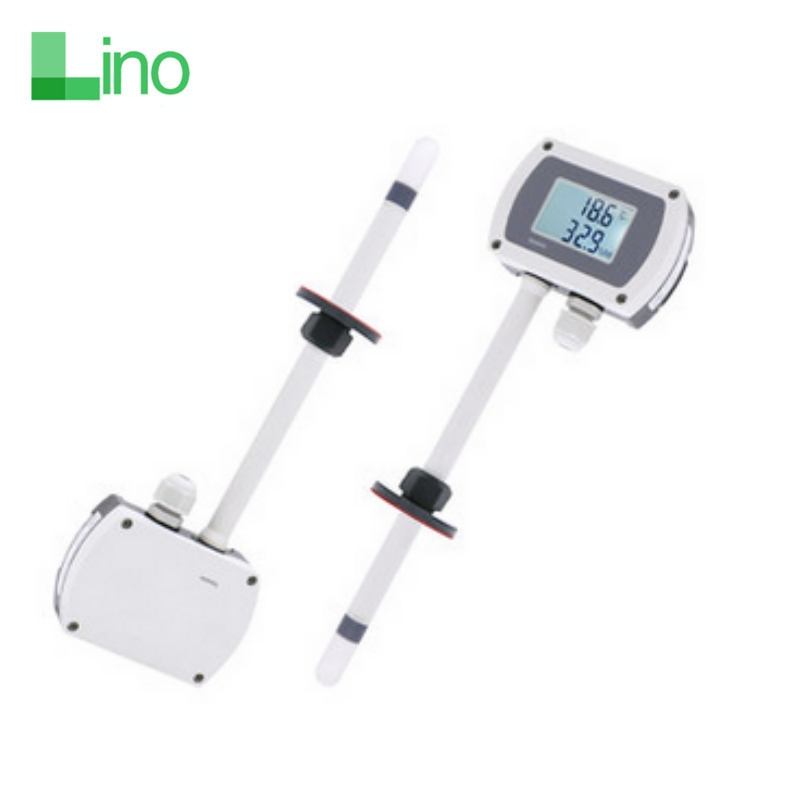

Detailed picture of RS485 duct temperature and humidity transmitter sensor



Specification


Item

RS485 Modbus/4-20mA/0-5V/0-10V Greenhouse Air Temperature and Humidity RH Transmitter Sensor

Overall material

ABS engineering plastic for main shell

Filter (contact)

polyethylene (density 50 μ m)

Seal (contact)

NBR / silicone

Cable locking head

nylon (locking wire diameter 5-8mm)

Display

LCD display without backlight

Temperature range

- 40 ~ 0 ~ 125 ℃

Humidity range

0-100% RH (relative humidity)

Supply voltage

24VDC (current / voltage output) 12-24vdc (RS485 output)

Output signal

RS485, 4-20mA, 0-10vdc

Response frequency

≤ 2Hz

Response speed

10 ℃ for temperature and 10% RH for humidity

The gas flow rate

0.1m/s

Working conditions

ambient temperature - 40 ~ 85 ℃

Ambient humidity

5% - 95% RH

Stability

± 1% RH FS / year ± 0.2 ℃ / year

Seismic performance

5g (20... 2000Hz)

Protection

IP65
