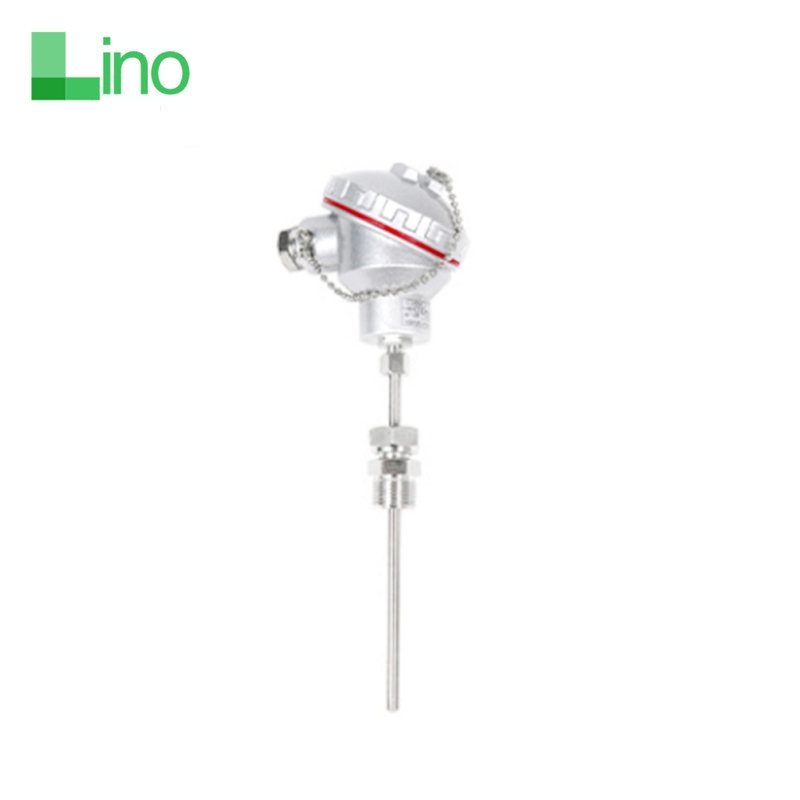

Description of PT100 temperature transmitter thermocouple
Description:
WRNK temperature transmitter uses a special temperature module, which can linearly
correct various types of thermocouples and thermal resistors, and output standard
analog signals. It has high accuracy, good stability, strong anti-interference ability,
waterproof, explosion-proof, temperature resistance, and shock resistance.
Features:
Wide measuring range, all stainless steel structure, various pressure interface forms,
protection grade IP65;
Various output signal forms can be displayed;
Intrinsically safe explosion-proof products meet the standard requirements.
Applications:
Temperature measurement of non-corrosive gases and liquids on 316L stainless steel.
It is applied to the industrial process site of petroleum, chemical industry, metallurgy,
electric power, hydrology and so on.
Parameters:
Measure range -55～1200℃
Accuracy ±0.5%（stardard）
Stability ±1.0%F.S/year
Work temperature -20℃~80℃
Power supply 12～36VDC
Output 4～20mA, 1～5VDC , PT100 etc
Thread M27×2 or customized
Case material 1Cr18Ni9Ti
Cable Polyethylene
Protection IP65Dimension:Model Selection:
