MF5200 air mass flow meter

Description of Split MF5212/MF5219 Oxygen Flow Meter Hospital Medical Gas Flow Meter

MF5200 series oxygen mass flowmeter is a flowmeter designed for the oxygen metering of floors and departments in the hospital central oxygen supply system. The flowmeter has a detachable display, RS485 network communication interface and user-defined alarm function to better realize network transmission and flow monitoring. MF5212 and MF5219 can measure 0~300L/min (standard condition) and 0~800L/min (standard condition) gas flow respectively. Users can choose the type with pressure display and the type without pressure display according to their needs.

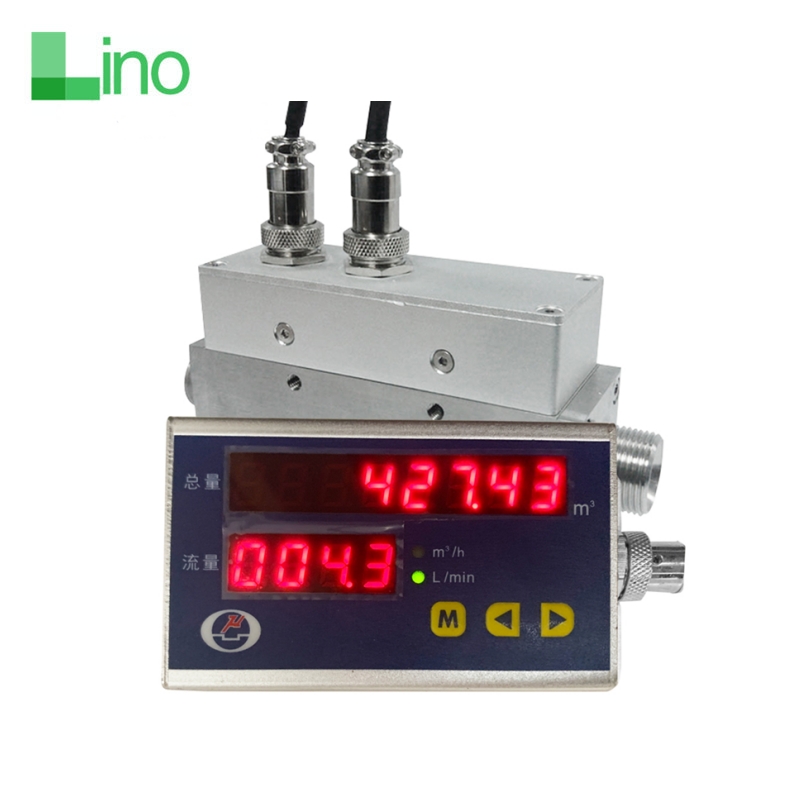

Details Images

Feature of  of Split MF5212/MF5219 Oxygen Flow Meter Hospital Medical Gas Flow Meter

1. Intelligent all-electronic flow meter;

2. MEMS micro-electro-mechanical system mass flowmeter (no need for temperature and pressure compensation);

3. Measurement accuracy +/-2% (direct measurement, no bypass);

4. LCD display (fast response time, display refresh time is 125ms);

5. Ultra-wide turndown ratio, accurate measurement can be performed within the measurement range of 30:1;

6. Ultra-wide starting flow rate, 500:1 display measurement;

7. Equipped with RS485 communication module, which cooperates with the host computer network to realize centralized management and control;

8. Separate display, convenient for concealed installation and convenient on-site display;

9. Large measuring range, up to 800SLPM (NL/min) flow rate;

10. The product has two pipe diameters of 1/2” (4 points) and 3/4’’ (6 points), with a wide range of applications;

11. The mechanical interface can be replaced, the default is a spherical seal, and various other connection methods can be selected according to customer needs.
