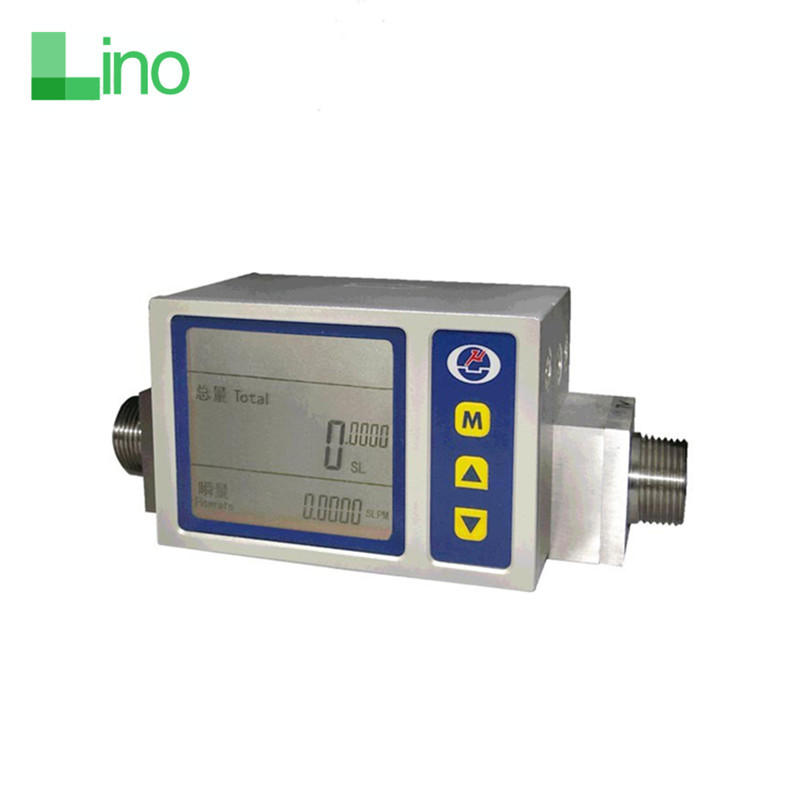

MF5600 series digital oxygen flow meter

Product Tags :

Product Description

LN MF5619 digital air co2 o2 oxygen gas flowmeter rs485 are are designed for general purpose flow metering and control applications where a detachable meter heat is required for some distance data reading. The meters directly measure mass flow with a very low pressure loss. The current models can be readily applied to hospital oxygen delivery management, and industrial process monitor and gauge; and other applications such as welding gas equipment, and food and beverage process. MF5600 can measure a flow up to 800 SLPM. The connectors can be fully customized.

Features

Specification

Item	LN MF5712 portable modbus co2 inline co2 price mass flow meter for gas
Brand	Lino
Model	MF5712
Flow range	0~200...300 (5612) / 0~600...800 (5619) SLPM
Initial flow rate	0.3 / 0.8 SLPM
Display	LCD
Output	RS485 / 4~20mA / Pulse
Working Temperature	-10-55ºC
Accuracy	±(1.5+0.5FS) %
Mechanical connection	NPT-F 1⁄2” / NPT-F 3⁄4”

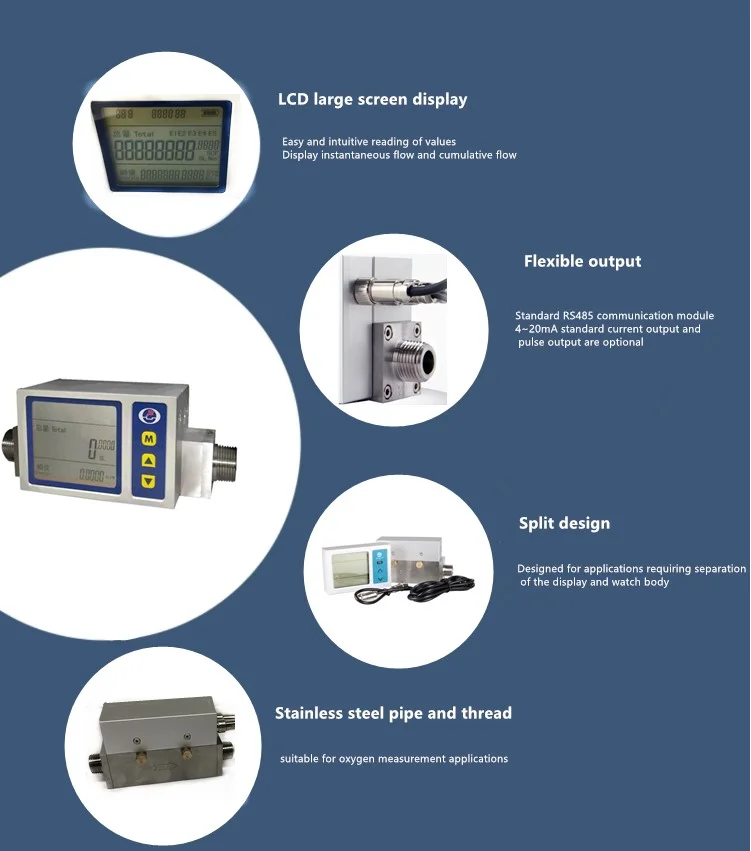

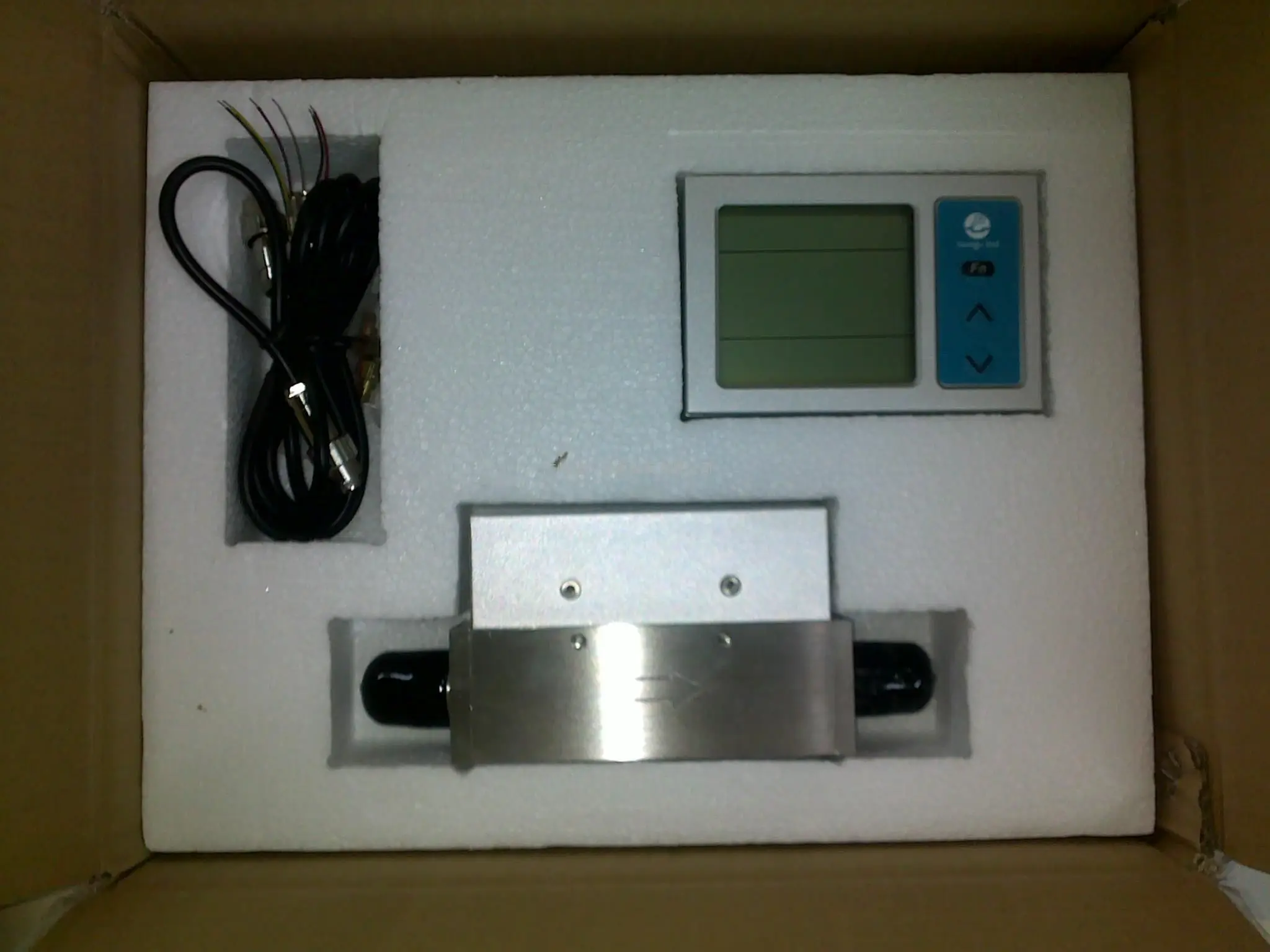

The split display can be installed away from the gas pipeline through a specially designed connecting cable
Very small starting flow
The flowmeter is equipped with RS485 communication module as standard, and 4~20mA standard current output and pulse output are optional.
The clean stainless steel body is suitable for oxygen measurement
Large range is conducive to accurate monitoring of gas flow
A variety of connection methods are optional, easy to install
